Optimise your industrial maintenance with our modern transmitters for vibration and temperature monitoring of machines and plants!

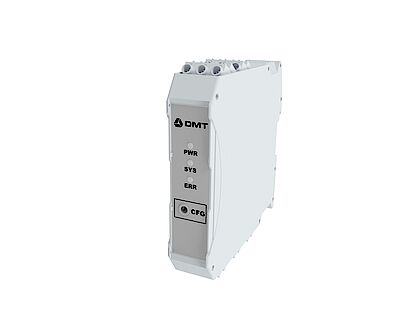

Our DMT VibraTherm transmitter for DIN rail mounting offers you a reliable solution for the precise monitoring of vibrations and temperatures on industrial machines and systems. The transmitter continuously determines the effective value of the vibration velocity and offers this, together with the recorded temperature value, for tapping as a 4..20mA signal. With its advanced technology, the signals can also be conveniently transmitted to the receiver via LTE / WLAN. This makes it easy to integrate sensors into modern IIOT infrastructures. In addition, the sensor signals are looped through and are thus available for further processing. The transmitters can be easily adapted to specific machine requirements via the associated configuration software. Combined with a robust industrial design, the transmitter allows you to detect faults early to avoid downtime and maximise the efficiency of your maintenance processes.

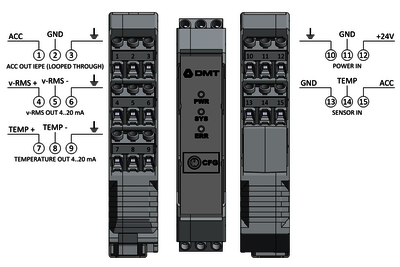

Technical data |
|
|
Size | 79 x 22,5 x 106,7 mm (L x W x H) |
|
Weight | 135 g |
|
Mounting | DIN Rail NS 35/7,5 or NS 35/15 |
|
Interface vibration transducer |
|
|
Type / Interface | Uniaxial vibration transducer with IEPE interface |
|
Samplingrate | 24 kHz |
|
Frequency range | 0,24 Hz – 10 kHz |
|
Interface temperature transducer |
|
|
Type / Interface | Temperature sensor / voltage input |
|
Voltage range | 0 V … 4,096 V |
|
Signal output |
|
|
ACC Loop-trough | IEPE |
|
v-RMS OUT | 4..20 mA |
|
Temperature RMS OUT | 4..20 mA |
|
Configuration interface |
|
|
Serial / USB | 3.5 mm jack to USB Type A (2.0 or higher) PC-side use of a virtual COM interface |
|
Power supply | 24 VDC +/-1 V, ~50 mA |
|
Environmental conditions |
|
|
Temperature | 0 °C - +55 °C |
|
Humidity | 0 – 95 % |
|
Protection class | IP 40 |
|
Error description | Supply voltage sensor[V] | LED blinking error code |
Open Input | 22 >= USensor < 25 | 2x |
Reverse polarity | 2 >= USensor < 5 | 3x |
Shortcut | 0 >= USensor < 2 | 4x |
Invalid sensor supply voltage | 23 > USensor oder USensor > 25 | 5x |
Contact us today for more information and to develop a customised solution for your needs. Together we will ensure efficient and reliable maintenance of your machines to increase the productivity and profitability of your business.
Please feel free to contact our specialists.
