DMT presents the most flexible cable bound seismic system: The SUMMIT X One

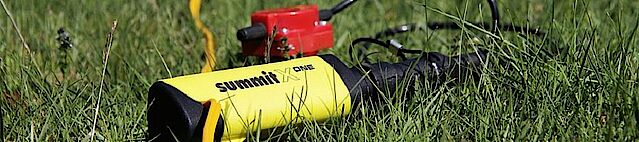

The SUMMIT X One represents the latest generation of DMT’s long-standing successful SUMMIT product line of field seismographs. Ultra small one-channel remote units linking to a lightweight SUMMIT line cable via the new optimized SUMMIT SNAP-ON technology result in the world’s most flexible wired seismic acquisition system.

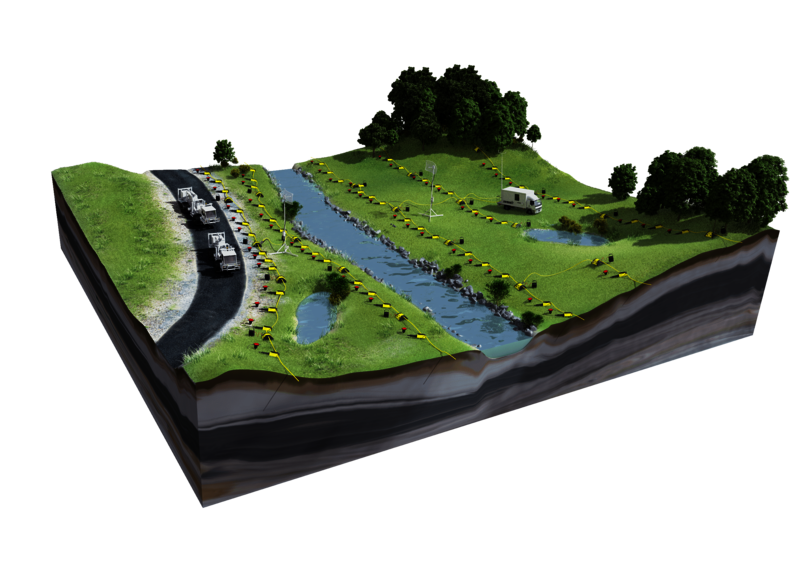

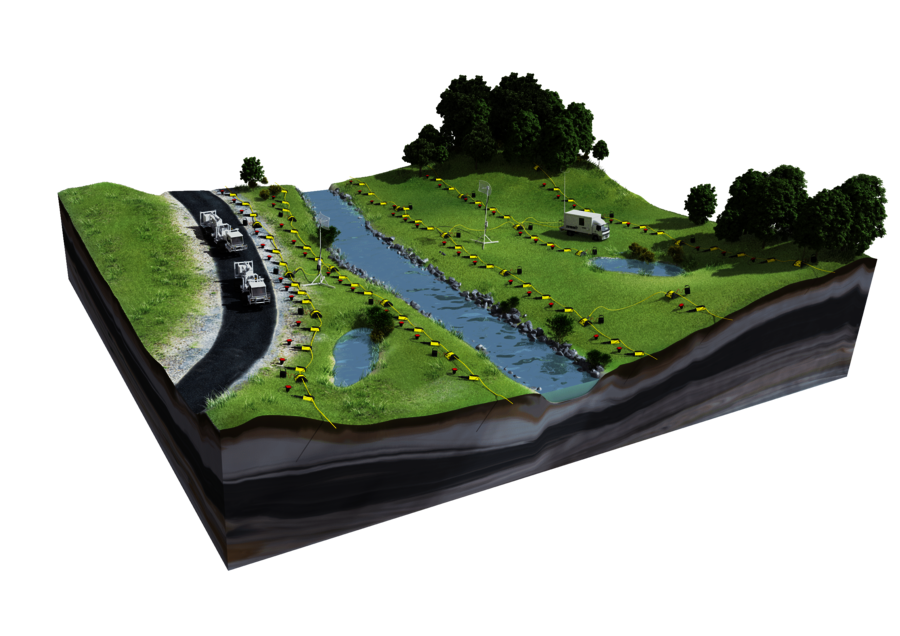

As the remote units can snap onto the line at any desired position, the SUMMIT X One provides an optimal solution for high resolution 2D and 3D seismic surveys also in challenging terrain. Any receiver spacing ranging from some tens of meters down to 1 meter can be realized with the same set of equipment.
Reliable and fast data transfer offers immediate and full quality control of acquired seismic data. The option of continuous data streaming also enables passive seismic applications such as monitoring of reservoir stimulation measures.
All in all, the SUMMIT X One combines the flexibility in field deployment of a wireless system with all the benefits of reliable online data access from a cabled system.
Unique flexibility for seismic experts!
- Optimised for high-resolution 2D / 3D surveys through its flexibility
- Fast and easy setup due to its unique snap-on technology
- Power and data transmission via lightweight two-wire cable
- Extremely small and robust casing
See all the features and advantages of the SUMMIT X One system demonstrated in this animated video.
Overview of Key Features
Snap-On Technology
- Connecting remote units at any desired position to the SUMMIT line cable provides outstanding flexibility for field deployment. The same system hardware can be used to realise totally different field configurations
SUMMIT Line Cable
- Lightweight 2-wire telemetry cable with easy handling and self sealing coating featuring secure and fast data telemetry as well as power distribution to remote units
Scalable System
- High cost efficiency already from the start with small systems of >24 channels for engineering applications up to large 2D/3D field deployments with >3,000 channels
Option for Continuous Recording
- Suitable for passive seismic applications (e.g. frac monitoring, CCS-monitoring etc.)
Application Areas
Mining exploration
- Detailed high resolution seismic exploration of deposit (2D/3D)
- In-mine exploration
Geothermal & Hydrocarbon
- Detailed high resolution reservoir exploration (2D/3D)
- Monitoring of reservoir stimulation (frac monitoring)
Infrastructure & Environmental
- Near surface structural mapping (reflection & refraction seismic)
- Seismic tomography measurements
- MASW appliactions
- ReMi applications
This video provides a full field demonstration on how to set up and do a 2D seismic refraction tomography using SUMMIT X-One, presented by our client Dr. Hector R. Hinojosa, Principal Geoscientist & Co-Founder of Cordillera Geo-Services LLC, USA.
Client testimonials
"Setting up different geometries for data collection is easy since the geophones can attach to the cable anywhere. We've been working down to -16F, and the seismic system has performed flawlessly."
Dr. Esther Babcock, Owner/Geophysicist, Logic Geophysics & Analytics LLC, Alaska USA, February 2023
"For our field work the Summit units are very comfortable, since in most cases we only need 2 persons to get the job done." - Click here to watch GEOFZIKA's active MASW survey using SUMMIT X One
Robert Stopar, Senior Geohysicist, GEOFIZIKA d.o.o., Slovenia, September 2022
"After almost a year of pretty intensive use of the new [SUMMIT] X1 system, I'm really super satisfied."
Professor Hermann Zeyen, Departement des Sciences de la Terre, Universite de Paris-Saclay, Orsay Cedex, France, May, 2022
"I can also attest to the ease of installation in the field. It's straightforward to use, the field set up parameters are easy to change, and the quality of the data is consistent. Overall we are very happy with the equipment."
Santiago Tomassi, Geophysics Technician, Municon West Coast, Vancouver BC, March 2022”
"The crew I have with me has never done seismic surveys before, so they don’t know how good they have it! I told the blaster about the “normal” trigger cable setup with standard systems consisting of 24 channel units, and having to drag the trigger cable everywhere, whereas he just puts the TU and TPU in his backpack and moves to the next spot. It is so much easier and quicker. We’re already ahead of schedule on this project and with excellent data quality."
Dr. Esther Babcock, Owner/Geophysicist, Logic Geophysics & Analytics LLC, Alaska USA, July 2021
"…I was really impressed how stable and robust the system was in the challenging conditions, with it freezing completely overnight and the snow melting during the day. I was worried about how to find some possibly disconnected/missing RUs. However, all the 230 RUs we had on the line were nicely activated every morning. From my point of view, very impressive performance!"
Dr. David Kusnirak, Senior Geophysicist, GEODATA Ziviltechnikergesellschaft mbH, Austria, April 2021
"I am quite impressed with the speed at which it is set up, and the flexibility it will offer, especially with how easy it is to expand the system. The gear is much lighter and easier to manage that some of the bulky cables we have to use at the moment"
Benjamin Wilkins, Geophysicist, GBG GROUP, Australia, February 2021
"...We were looking for a lightweight, easy to transport and reliable, robust, high-resolution solution at a good price. While one may say this is impossible to get in one system, it is exactly what we have found with the SUMMIT X One...The system saves us personnel costs on site because of the ease for deployment and operation...There is absolutely nothing I can fault the SUMMIT X One system and support on..." (Read the full review)
Eva Sutter, Geophysicist, Cook Costello, New Zealand, October 2020
"The new Summit One X System is lightweight and allows us to design and carry out flexible set-ups in very demanding environments. Since its incorporation to our pool of instruments our field crews have achieved a reduction of 30% in acquisition times with respect to our older system. It is a game changer."
Dr. Sénen Sandoval, Geophysicist, Everest Geophysics, Spain, August 2020
"...DMT, and the SUMMIT X One system rated highest or equal-highest in GHD’s evaluation...set up and field handling is very easy, flexible, fast and bomb-proof reliable. The pre and post-sales support we have received from DMT and their Australian rep, Geosensor has been outstanding. Accordingly, we would recommend the SUMMIT X One system and DMT as a vendor with the highest degree of confidence...." (Read the full review)
Hugh Tassell, Principal Geophysicist, GHD Pty Ltd., December 2016
"I had yesterday a field campaign in the tunnel with the X One and I’m glad to report that it worked like charm!” (after a successful tunnel survey with SUMMIT X One)
Dr. David Kusnirak, Senior Geophysicist, GEODATA Ziviltechnikergesellschaft mbH, Austria, May 2020
"...compared to our older standard 24 channel system the benefits of the Summit X One were much less equipment and more than 50% lighter than older system, data quality seems better than what we have seen with no electrical noise, trigger system is much easier to use than previous seismic blasting systems...
The above benefits allowed operation with a smaller crew, less fatigue, higher productivity and lower cost per channel..." (Read the full review)
Doug McConnell, Head of Geophysics, DMT Geosciences Ltd., Canada - May 2020
